Walking through the structures from the museum’s courtyard to the top of the slope. In order: the walk inside the courtyard (Studio Fauvel), the staircase, the structure with the bow window effect and finally the structure on top of the slope.

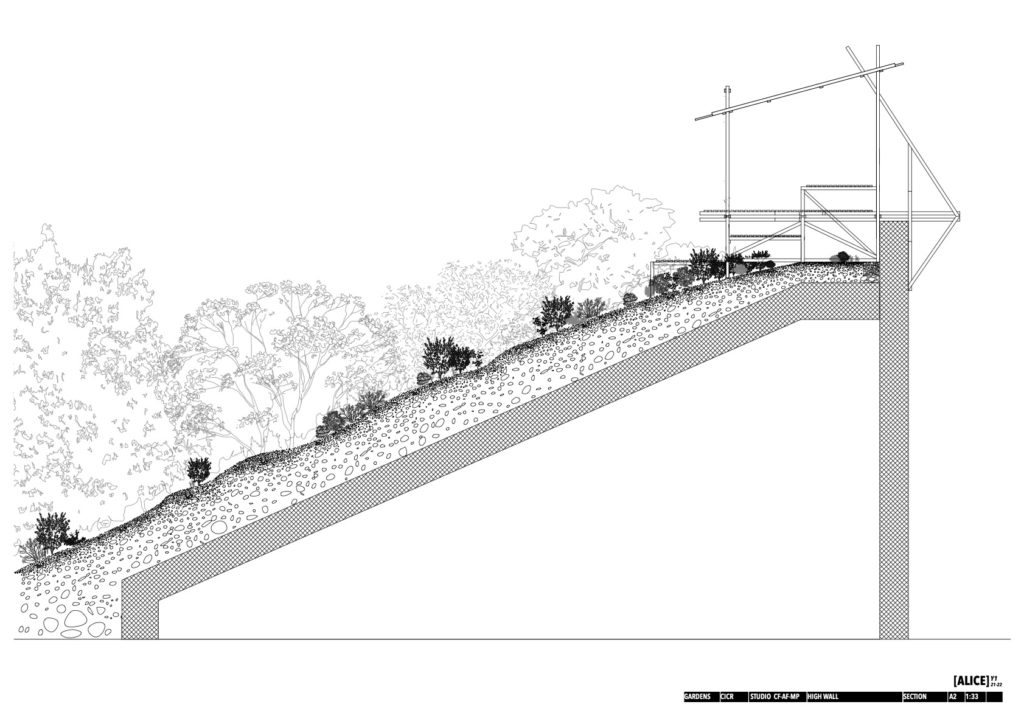

Section 1:33 of the structure placed on the top of the slope, hanging on the high wall of the museum’s courtyard.

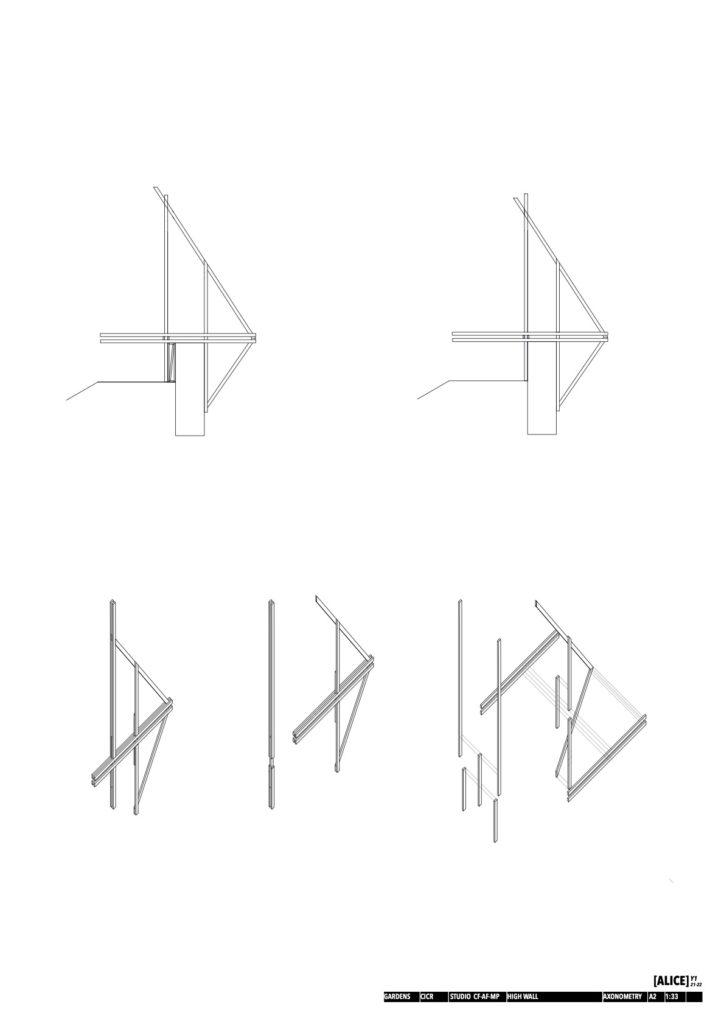

Detail 1:33 of the hanging system on the high wall.

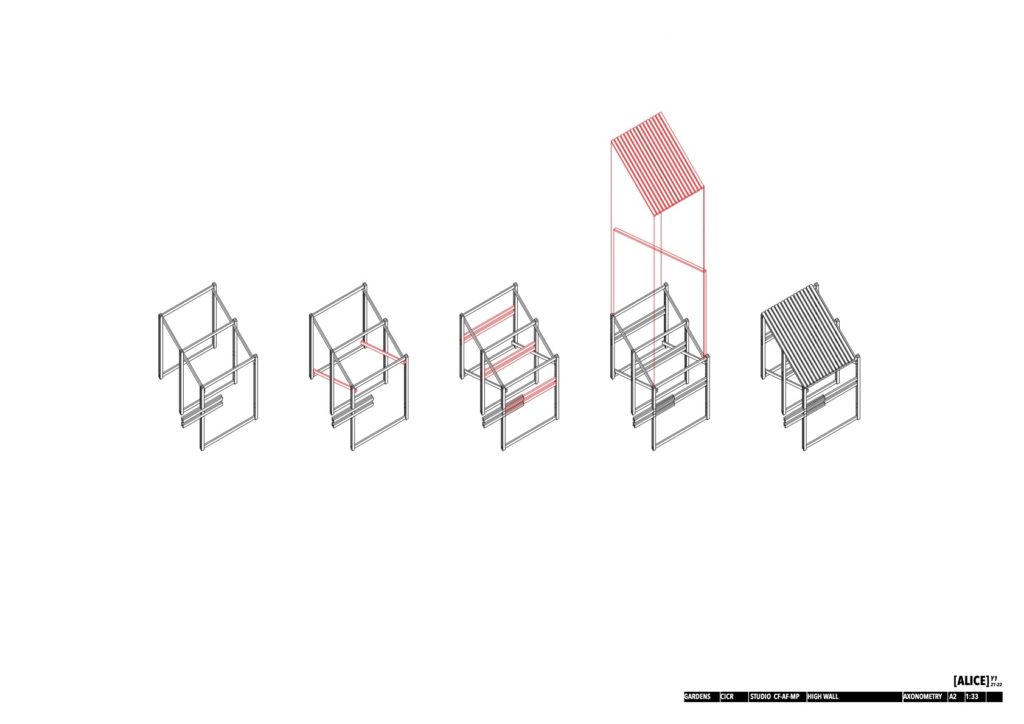

Detail 1:33 of the floor structure.

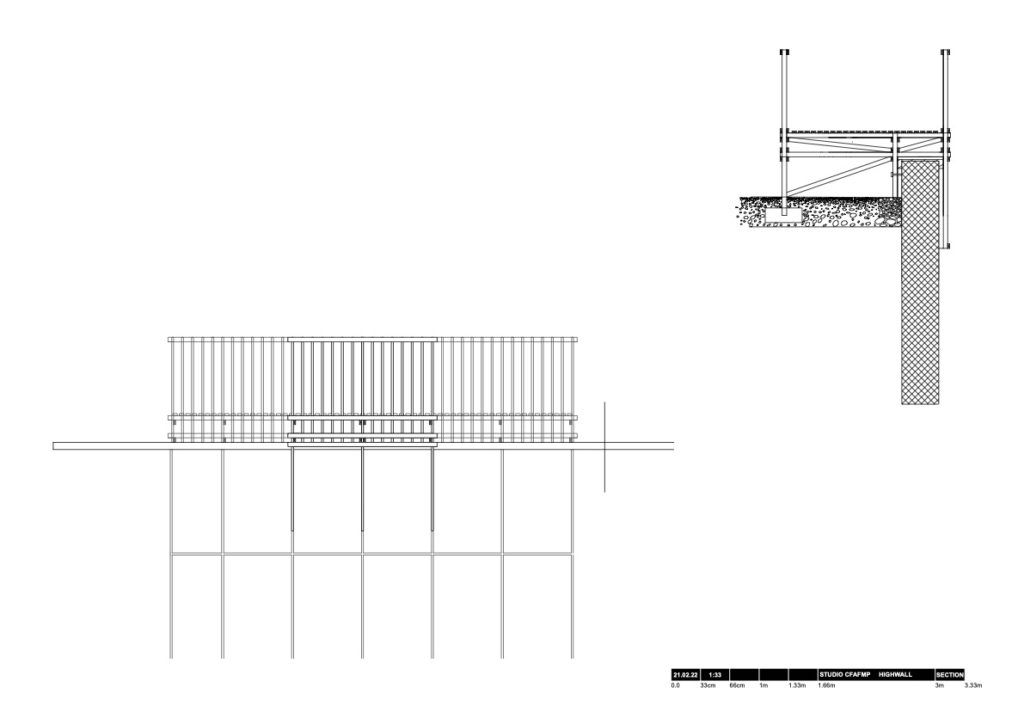

Section 1:33 of the structure placed on the top of the museum’s courtyard, that connects the staircase to the structure at the top of the wall. It allows a bow window effect on the courtyard.

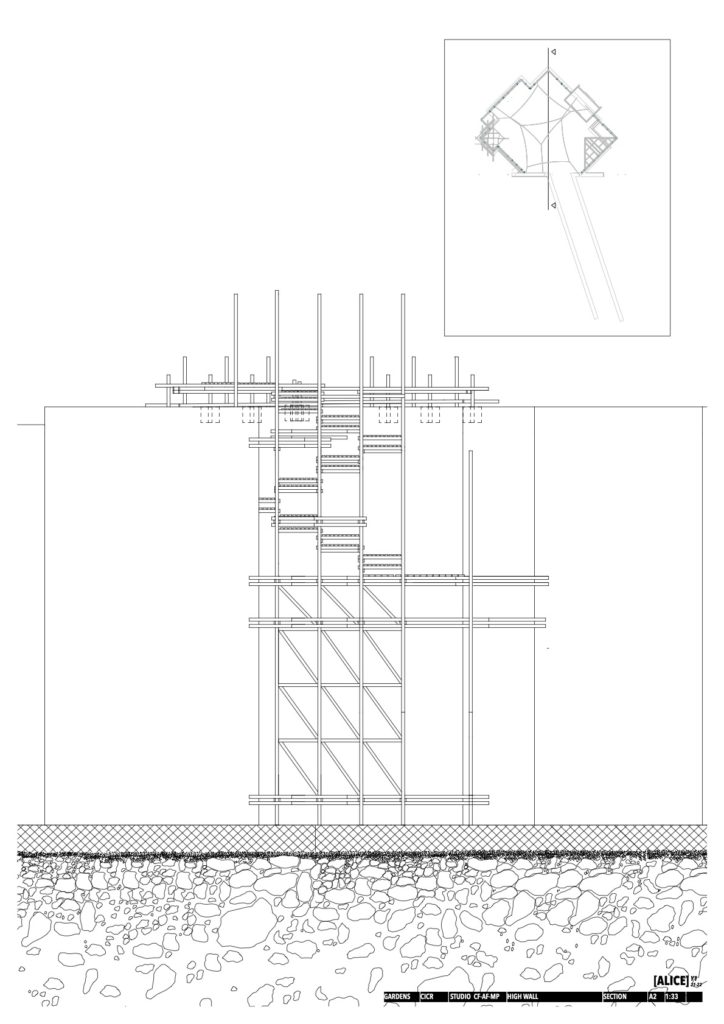

Section 1:33 of the staircase.

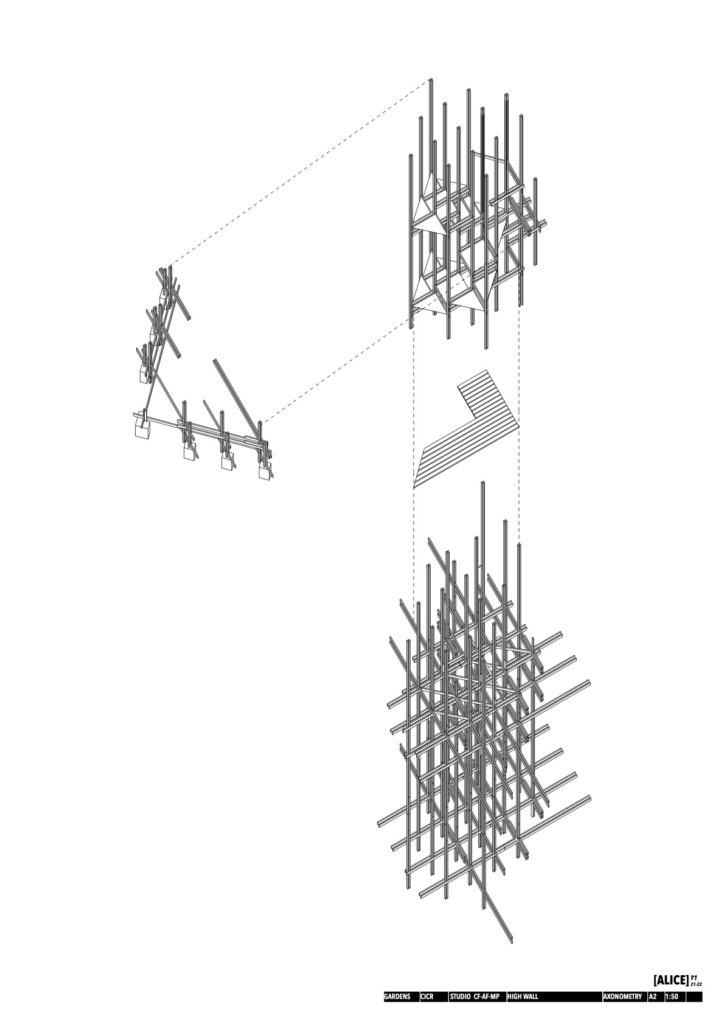

Axonometry 1:33 of the staircase with the base structure supporting the steps, the steps and the wall hanging system.
The staircase allows the direct passage from the courtyard of the museum to the top of the slope. The space allowed by the shape of the courtyard forced us to think about a rhythm of sustained steps, which created this repetitive and circular movement.
